Description
High-quality steel scaffolding frame systems are constructed from galvanized steel pipes and standardized frame components, suitable for a variety of construction needs.
The system includes snappy frames, access frames, trapezoidal frames, box frames, narrow frames, and heavy-duty support frames to meet different construction environments and load requirements.
Features
Steel Properties
Steel grade: Q235 / Q345, yield strength: 235MPa / 345MPa

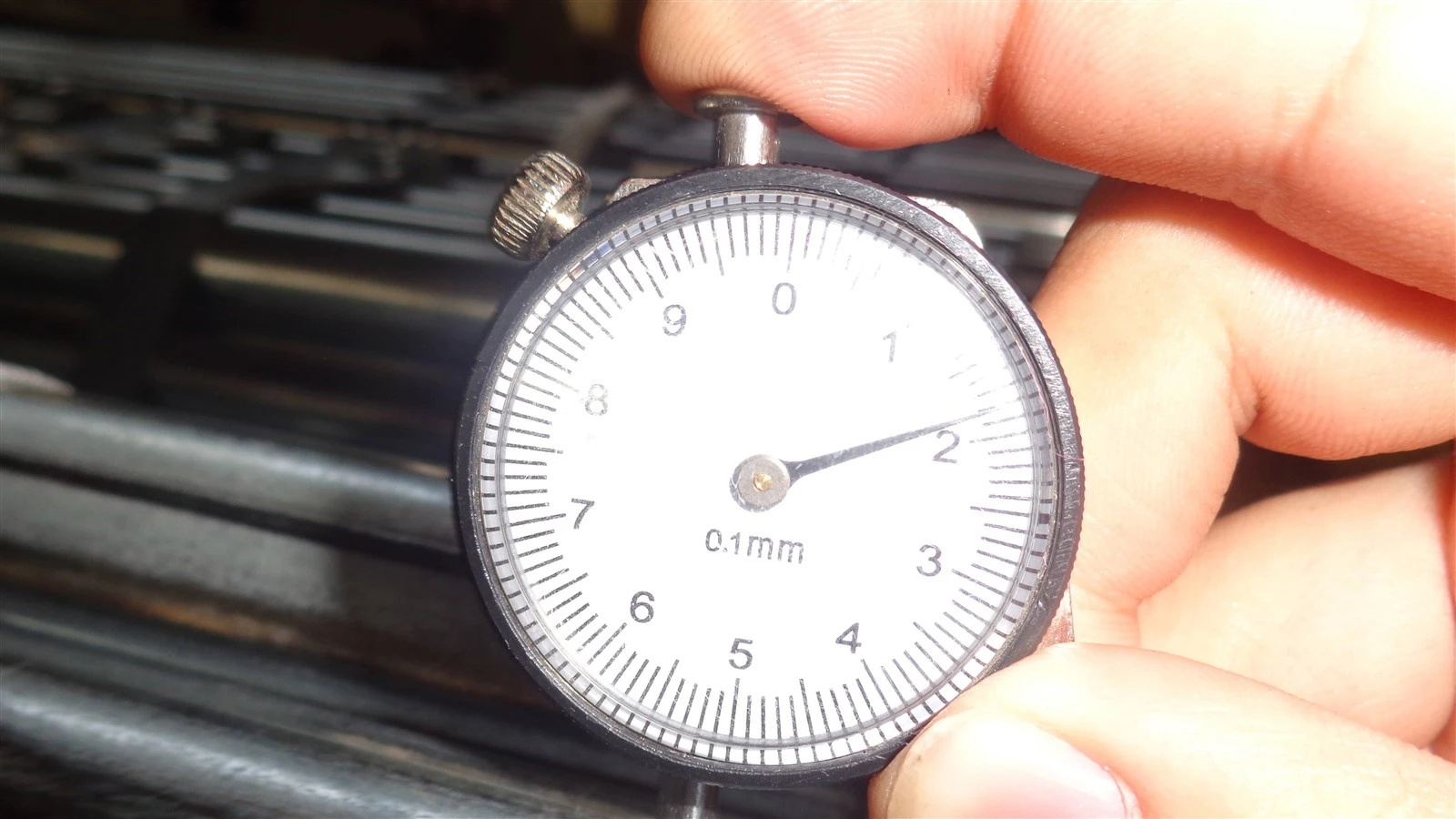

Outer diameter: 42.7 mm, wall thickness: 2.0~2.4 mm
Zinc coating: ≥ 80 μm, salt spray test: ≥ 480 hours
Powder coating thickness: 60~80 μm, suitable for use in high humidity and rainy environments
Frame Structure
Modular assembly, horizontal and vertical bar spacing can be calculated based on load
Joint weld strength: ≥ 20kN
Joint gap: ≤ 2 mm, ensuring tight assembly
Connectors and Load-Bearing Capacity
Wedge pin shear resistance: ≥ 15kN
Screw jacks, U-shaped supports, and guardrail posts can be matched with frame holes
Load capacity: 2kN/m² (EN BS12811 verified)
Environmental Adaptability

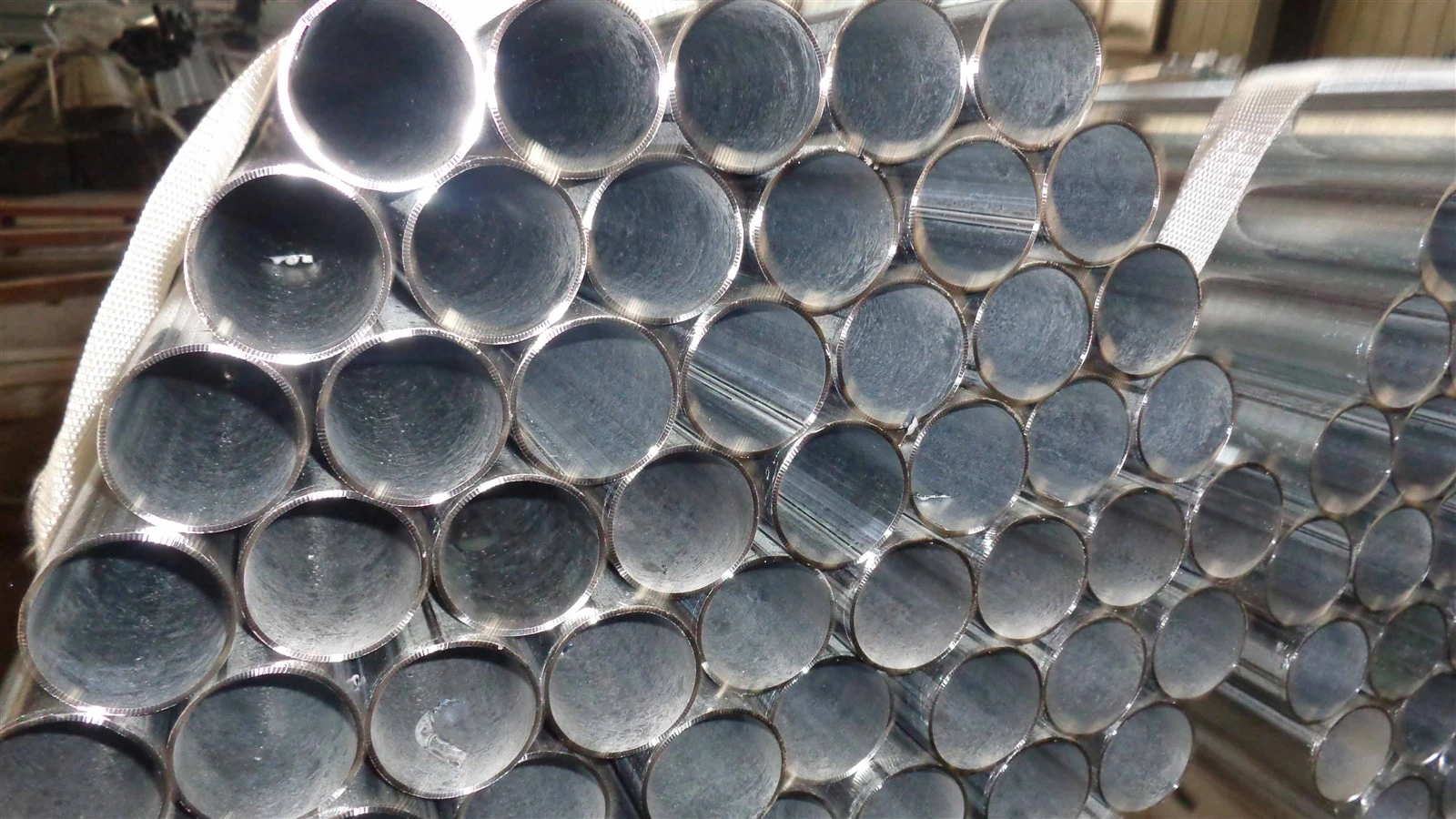

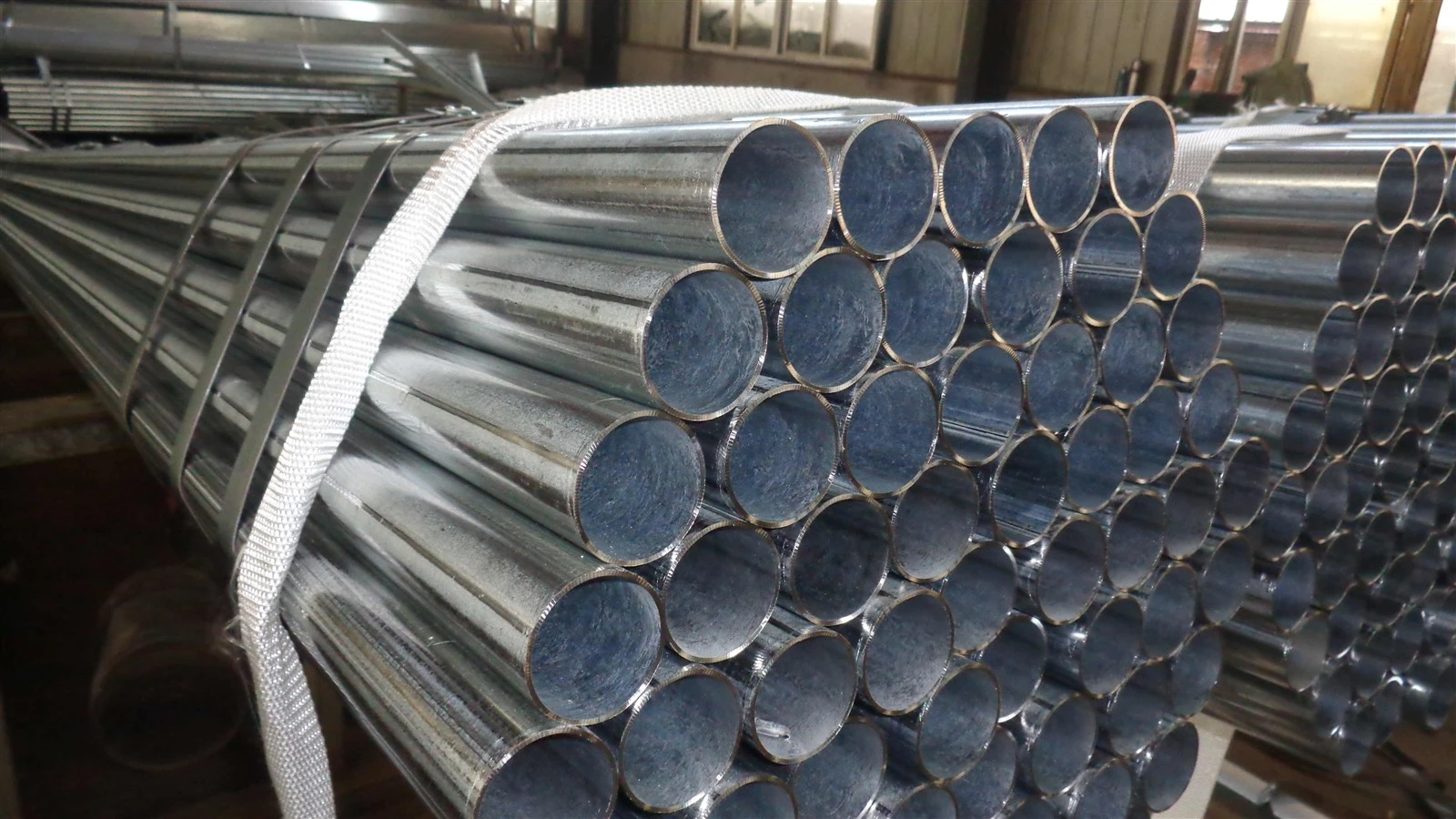

Galvanized steel pipes are corrosion-resistant and suitable for long-term outdoor construction.
Powder coating protects against rain corrosion.
Can be installed and disassembled in temperatures ranging from -20°C to +60°C.
Specification
|
Item Name |
Width*Height(mm) |
OD/Thickness(mm) |
Material |
Surface Treatment |
|
Walk through Frame |
5′*6′7" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
|
Walk through Frame |
3′*6′7" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
|
Walk through Frame |
5′*6′4" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
|
Walk through Frame |
5′*6′6" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
|
Walk through Frame |
3′*6′4" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
|
Mason Frame |
5′*6′7" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
|
Mason Frame |
5′*5′1" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
|
Mason Frame |
5′*4′1" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
|
Mason Frame |
5′*3′1" |
42.7*2.4/32*2.0 |
Q235/Q345 |
Powder coated /HDG |
Customization Options
Customizable Dimensions and Load Capacity
Frame width and height can be customized according to construction drawings, supporting adjustments within the range of 3′~5′ width and 4′~7′ height.
The length and spacing of horizontal and vertical bars can be calculated based on the design load to ensure a platform load capacity of ≥ 2kN/m² per square meter.
Additional supports or thicker members can be added as needed to improve load-bearing capacity.
Materials and Surface Treatment
Steel grades available are Q235 or Q345, with yield strengths of 235MPa and 345MPa respectively.
Zincing methods include hot-dip or cold-dip galvanizing, with coating thickness customizable to ≥ 80 μm.
Powder coating thickness is adjustable from 60 to 80 μm, and colors can be selected to suit different construction environments.
Steel and coating combinations can be accompanied by salt spray test reports of ≥ 480 hours for easy verification by the purchaser.
Customizable Joints and Connectors
Wedge pin shear strength can be customized to 15~20kN according to project load requirements.
Joint gap ≤ 2 mm precision ensures tight assembly.
Screw jacks, U-shaped supports, and guardrail post holes can be customized according to construction drawings.
Static and dynamic load test reports for nodes are available for on-site construction safety verification.
Why choose us?
Material Inspection
Chemical composition analysis and tensile strength testing of steel pipes to ensure Q235/Q345 steel performance meets standards.
Galvanized layer thickness measurement and salt spray test ≥ 480 hours.
Frame Assembly Verification
Static load test ≥ 2kN/m², joint welding strength ≥ 20kN.
Modular assembly test to verify joint tightness, interchangeability, and load uniformity.
Provide laboratory test reports and construction load verification forms.
Batch Traceability Management
Steel source records, production batch numbers, and processing records.
Each component can be traced back to its production batch for easy quality management.
Material testing reports and production records can be provided to meet the purchaser's review requirements.
Technical Support and Construction Services
Provide construction plan calculation sheets (load capacity, span, joint bearing capacity).
Support on-site installation guidance and assist in matching construction drawings with actual loads.
Provide joint load verification data, technical consultation during construction, and answers to questions.
Support full-process project tracking, including assembly plan optimization and on-site problem feedback.
