![Scaffolding Ladder Beam for Steel Pipe]()
Scaffolding Ladder Beam for Steel PipeDescription Scaffolding Ladder Beam For Steel Pipe The ladder beam is designed to provide a clear span between scaffolds. It has a depth of 300mm and rungs that are 300mm center to center. Detailread more -
![Strong Loading Capacity Steel Ladder Beam]()
Strong Loading Capacity Steel Ladder BeamDescription Strong Loading Capacity Steel Ladder Beam 1.Surface treatment:Hot dipped galvanized,Painted 2.Material: Q345 for standards, Q235 for other components or as your request 3.Diameter: 48.3mmread more -

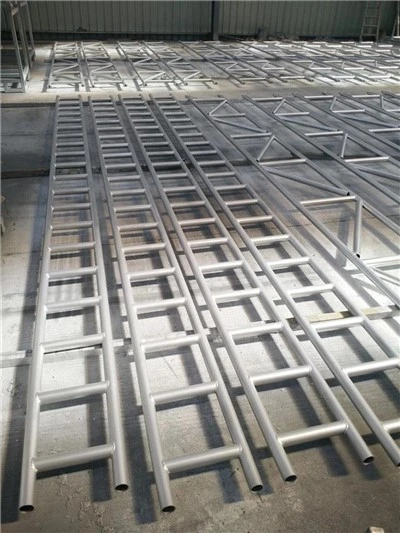

![Galvanized Scaffolding Ladder Beam]()
Galvanized Scaffolding Ladder BeamDescription To provide a clear span between scaffolds. 300mm deep and 300mm center to center rungs. Constructed from 48.3mm O/D x 3.2mm high tensile steel and saddle welded at every joint, they fullyread more -
![Scaffolding Pipe Sleeve Coupler]()
Scaffolding Pipe Sleeve CouplerDescription Scaffolding Pipe Sleeve Coupler Scaffolding Coupler play a crucial role in the tubular scaffolding system. They provide the essential function of fastening and connecting the variousread more -

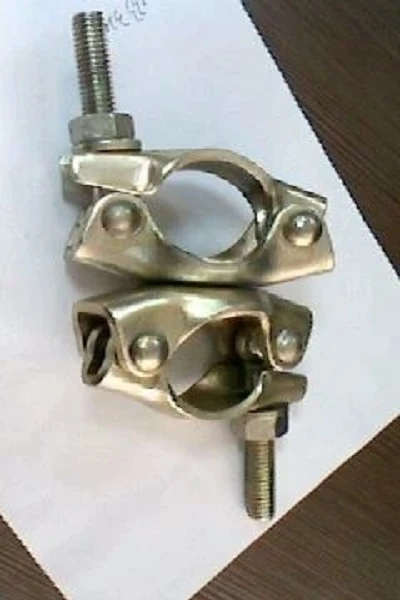

![Press Scaffolding Coupler]()
Press Scaffolding CouplerDescription Press Scaffolding Coupler Scaffolding Coupler are indeed a crucial component of the Press Scaffolding Coupler. They provide the essential function of fastening and connecting the variousread more -
![High Quality Tube Coupler]()
High Quality Tube CouplerScaffolding Coupler is the main part of the tubular scaffolding system, it supplies a fasten and connect functions in system.Simple construction and big loading power, make Coupler easier and widelyread more -

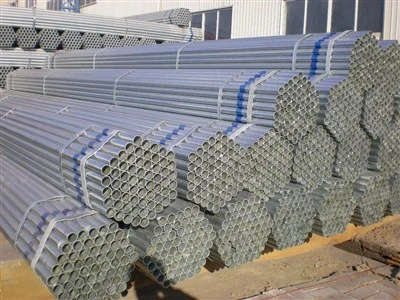

![Pipe and Coupler Scaffolding System]()
Pipe and Coupler Scaffolding SystemDescription Pipe And Coupler Scaffolding System The hot-dipped galvanized surface treatment is a key feature of these pipes. This process involves coating the steel pipe with a layer of zinc, whichread more -

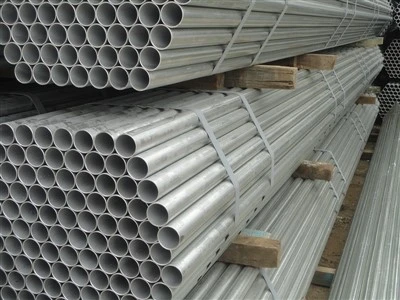

![Hot Dip Steel Tube Pipe]()
Hot Dip Steel Tube PipeDescription Hot Dip Steel Tube Pipe The Scaffolding Pipe is indeed a crucial component of the tubular scaffolding system. These pipes form the main structure of the scaffolding, providing theread more -

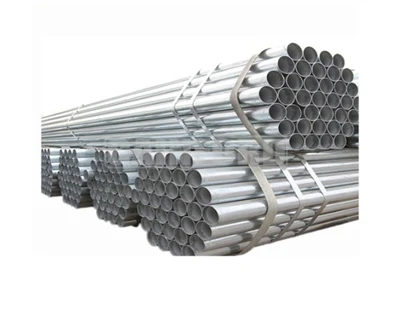

![Scaffolding Pipe Clamp Scaffolding]()
Scaffolding Pipe Clamp ScaffoldingScaffolding Pipe is the main part of tubular scaffolding system. Hot dipped galvanized surfaces treatment provided the excellent appearance with sufficient durability in such applications where saltyread more -

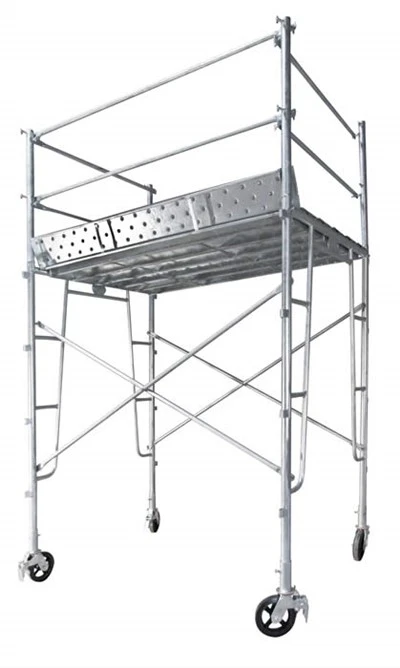

![High Quality Steel Scaffolding Frame]()
High Quality Steel Scaffolding FrameDescription High Quality Steel Scaffolding Frame This system, with its various components and features, is indeed a robust and versatile solution for many construction needs. Features √ F rameread more -
![Factory Price Ladder Frame]()
Factory Price Ladder FrameDescription Factory Price Ladder Frame This Ladder Frame system is indeed known for its robustness, versatility, and adherence to safety standards. Features √ Components : The Ladder Frameread more -
![High Demand Product H Frame Scaffolding]()
High Demand Product H Frame ScaffoldingDescription High demand product H frame scaffolding Frame Scaffolding System is one of our high demand product in construction. Mainly contains frame, cross brace, joint pin and catwalk . Here is theread more
A scaffold, also called scaffolding or staging, is a temporary structure that allows people to stand on a stable platform for work at height or in hard-to-reach places.
These temporary structures are often used in constructing, maintaining, or repairing buildings, bridges, and other man-made structures by supporting work crews and materials.
Formwork is molds into which concrete or similar materials are either precast or cast-in-place. In the context of concrete construction, the falsework supports the shuttering molds. In specialty applications formwork may be permanently incorporated into the final structure, adding insulation or helping reinforce the finished structure.
Benefits of Scaffolding
Improved stability
Designers create access scaffolding to provide a stable work platform. Its sturdy frame and bracing system helps prevent swaying or shifting, even when multiple workers are present. This stability gives workers peace of mind so they can focus on the task at hand.
Fall protection
Proper guard railing acts as an effective barrier, preventing dangerous falls. The railing should be at the approved osha height, with a mid-rail for added safety. Access scaffolding guardrailing meets or exceeds safety standards to protect workers at elevated heights.
Safe access and egress
Having a safe means of accessing and exiting the work area is crucial. Access scaffolding incorporates features like walk-through frames, self-closing access gates, and properly installed ladders or stairways. These provide workers a secure way to enter and leave the platform.
Adaptable and secure
You can adapt access scaffolding to various shapes, sizes, and types of projects. The designers have secured it to structures for maximum stability by providing options like anchor ties, stabilizers, and base plates to keep the scaffolding firmly in place. Proper securing and bracing is essential, especially for taller structures.
Offers versatility for different projects:
Formwork isn’t a one-size-fits-all solution. There’s a wide range of formwork materials and systems available, from cost-effective timber for smaller projects to reusable steel or aluminum for large-scale constructions. This flexibility allows contractors to choose the most suitable and economical option for each job.
Promotes sustainability:
Modern formwork systems, particularly those made of steel or plastic, can be reused multiple times. This significantly reduces waste compared to traditional timber formwork that’s often discarded after a single use. Additionally, some systems are even recyclable at the end of their lifespan, furthering their eco-friendly credentials.
Achieves the desired shape and finish:
Formwork acts as a blueprint for your concrete elements. By using the right formwork system, you can achieve the exact dimensions, angles, and surface quality you need. This ensures a clean, professional finish that reduces the need for additional post-construction work.
Boosts efficiency and saves time:
Modern formwork systems are designed for ease of use. Compared to traditional methods that required extensive carpentry, prefabricated panels and modular components can be assembled and disassembled quickly, saving valuable time and labor costs on your project.
Enhances safety on the job site:
Sturdy and well-designed formwork provides a safe and stable working environment. It can handle the weight of wet concrete, reducing the risk of collapse and ensuring worker safety throughout the pouring process.
Single scaffolding
Single scaffolding stands parallel to a wall of a structure by using vertical supports called standards. Ledgers, the horizontal supports, connect to the standards at an even vertical angle. Putlogs are the holes in the building or structure through which the scaffolding connects for support. The most common use for single scaffolding is brick masonry.
Double scaffolding
The primary use for double scaffolding is stone masonry because stone walls present challenges when trying to create holes for putlog anchoring. In this type of scaffolding, a double row of scaffolding makes the entire support structure stronger. The first row sits parallel to the wall, while the other row sits away from the first row. Added putlog holes support the frames. Rakers and cross braces provide additional support to the scaffolding.
Rakers are a type of tie that sets the scaffolding securely to a building, and cross braces hold a part of the scaffolding in a fixed position in relation to another part of the scaffolding or some other structure.
Cantilever scaffolding
Construction workers use cantilever scaffolding when the ground is strong enough to support standards and when a wall's upper level is under construction. The standards receive support from needles, which are protrusions sticking out from a structure on which a platform sits. Workers remove the needles from holes in the structure. This type of scaffolding is often more unsteady than other types, so taking extra precautions might be helpful while constructing it.
Suspended scaffolding
Wires and chains suspend this type of scaffolding platform from a structure's roof. A lever or electronic system allows the platform to raise and lower as needed. Painters, window cleaners and repair positions commonly use this type of scaffolding.
Trestle scaffolding
This type of scaffolding includes a platform that sits on top of a ladder with wheels for maneuverability. It varies in size and is useful for outdoor and indoor purposes. Repair positions, maintenance workers, warehouse workers and painters regularly use trestle scaffolding.
Steel scaffolding
Steel supports adhered together with couplers comprise steel scaffolding. This type of scaffolding is simple to construct and dismantle. Because it's made of steel, this scaffolding is more durable, sturdier and more fire-resistant than other types.
Patented scaffolding
Patented scaffolding benefits from a steel composition and comes equipped with special couplings that lock supports firmly together. The working platform sits on height-adjustable brackets.
Wooden and bamboo scaffolding
Wood and bamboo scaffolding are more common in Asia than anywhere else in the world. These scaffoldings are notable for their flexibility and eco-responsible nature. Technicians and proficient designers construct and move through layers and stories of bamboo scaffolding while working on structures.
Tube and clip scaffolding
This is a steel-based scaffolding that is easy to assemble. It simply requires connecting supports to form long pole runs and then standards and ledgers connected with clamps made specifically for these supports. This scaffolding is popular because you can move the ledgers wherever necessary and adapt its form to irregular and oddly shaped structures to reach several different locations.
Kwikstage scaffolding
Kwikstage scaffolding is popular because it's adaptable to commercial and residential projects and is fairly easy to construct. It has a non-slip platform and double guard railing, which makes it safe for construction workers and reliable enough to place equipment upon. Galvanized steel comprises this scaffolding, allowing for sturdiness and a durable interlocking system. The system is also customizable and adjustable for any height.
Types of Formwork
Beam formwork
Prefabricated pieces of form sheeting make up beam formwork. Sheetings are attached together using a cover strap method to create side panels and bases. The extent of the job will be determined by the dimensions of the aa cover straps and sheeting base. The forms are kept together by means of wire ties and a whaler that is mounted at the top edge of the side sheeting. diagonal sheets support the whaler and the segments.
01
Column formwork
Formwork sheets for columns are typically prefabricated to exact specifications. Anchoring the sheeting panels in the foot rim is done with steel bolts. The vertical arch timbers are positioned to bear the weight of the formwork's cover straps. Lateral ties for the column within the formwork are created with the transverse board braces.
02
Wall formwork
Vertical formwork bearers are used for wall shuttering, with the concrete side being fastened to sheeting boards. Furthermore, boards are used to diagonally reinforce the upright timbers. The opposing whalers need to be tied at measured intervals, and cleaning holes need to be allotted at the base of the formwork.
03
Foundation formwork
Different sizes and shapes of foundations require unique foundation formwork. Isolated foundation formwork requirements and strip foundation formwork requirements are not the same. The size and depth of the foundation are the two most important factors in the design of the formwork. Foundation formwork typically consists of sheeting panels and formwork bearers fastened together with tie wires and metal screws.
04
Slab formwork
The ceiling shuttering system facilitates moving, setting up, and stocking. Maximum stability and rapid assembly and disassembly are two advantages of ceiling formwork. Shuttering a ceiling is a simple process that entails only using steel supports and wooden beams.
05
Applications of scaffolding are vast and diverse, matching numerous work purposes. Various uses include:
1.Initial construction of a building
2.Renovation work to exterior walls, interior walls and ceilings
3.Roofing installation, upgrade and repair
4.Restoration work on historic buildings and art or sculptures attached
5.Window washing
6.Window replacements
7.Siding work
8.Painting and sealing
Application of Formwork
Walls
Modular formwork systems are frequently used for constructing walls, both vertical and inclined. The formwork panels can be easily interconnected and adjusted to create the desired shape and dimensions of the walls. This includes various types of walls, such as shear walls, retaining walls, basement walls, and exterior walls.
Beams and slabs
Formwork systems are also utilized in constructing horizontal members like beams and slabs. Modular formwork is used to create the formwork for these structural elements, and they provide support and shape to the concrete during the pouring and curing processes.
Columns
Modular formwork is extensively used for casting columns of different shapes and sizes. The formwork panels can be arranged and fastened together to create the formwork for round, square, or rectangular columns. Modular systems offer flexibility in adjusting the formwork to meet specific column dimensions.
Components of Scaffolding
Standards – These are the perpendicular tubes. Their engineering function is to receive and transfer passive and active loads to the baseplates. Their additional function is to extend the height of working platforms. Standards work in conjunction with connecting pins and socket joints.
Ledgers – These tubes are installed horizontally along the length of the 3d structure. They form connections from standard to standard. Multiple bays are connected in this manner and deliver the height of the working teams’ elevated operations platform.
Transom – Transoms are used to support standards and are also installed horizontally but along the width of the 3d structure. They are, therefore, at right angles to the ledgers. A transom’s length indicates the width of the working bay.
Scaffolding tubes – These are hollow pipes manufactured from steel or aluminium. Steel tubes are generally heavier and less easy to manoeuvre and assemble than aluminium but are a highly durable and cost-effective form of tubular scaffolding.
Couplers/special couplings – Putlog couplers, swivel couplers and right angle couplers are the components that join the vertical and horizontal tubes. Right angle couplers and swivel couplers are the only suitable options for load-bearing connections.
Diagonal braces – These are additional lengths of steel or aluminium that aid in the additional disbursement of passive and live loads. These allow for larger scaffolding structures.
Boards, decks and planks – These are the “floorboards” Of the working bay that the team stand on to conduct operations. They are manufactured from timber, steel or aluminium.
Base plates – Also know as a base jack, these are the adjustable “feet” Of the overall structure which are the load-bearing base for the scaffold and can be used for refined levelling of the structure.
Guard rails – Aafety rails to prevent the crew from falling off.
Toe boards – A low-level guard rail system to prevent tools or materials from falling off the structure.
Putlog scaffold – Putlogs or putlock scaffolding is when transoms are connected to the building to form part of the support system for some types of scaffolding setups.
Ties:
A tie is a tensile unit used to connect opposite sides of formwork. It serves as a balanced connection or is used to resist the effective pressure of fresh concrete.
Braces:
Braces are used to keep the formwork upright by deterring form deflection under lateral pressure.
Studs:
Studs in the formwork are used to support sheathing panels and make a framework to keep them in position.
Sheathing:
Sheathing panel is used to keep the concrete in its required shape and position until it sets and hardens.
Wales:
Wales are horizontal propping members that are placed against sheathing to directly resist sheathing pressure.
Battens:
Battens are vertical members in the formwork which keep cleats and wales uptight and in position.
Footing:
Footing is the bottommost member which supports the entire formwork.
Material of Scaffolding
Wood
Wood was the most common scaffolding material up until the 1920s, but it has since been replaced by inorganic materials such as aluminum and steel.
The only scaffolding component that is still made out of timber is the working platform or board. Timber from fir or pine wood is a great material for boards as it’s lightweight, fairly durable, and easy to install. It also tends to be low in cost, especially in locations where it’s easily accessible.
However, timber is not as strong as metal. Thus, it’s not suitable for platforms that need to carry extra heavy equipment. It’s also high-maintenance, as it’s prone to rot, cracks, and even pests. As an organic material, timber includes the risk of shrinking, swelling, or bending when exposed to different climate conditions. Most of all, it poses an environmental implication due to the continuous deforestation needed to supply it. All in all, wood isn’t as strong, durable, and adaptable as metal, which are some of the reasons why it’s less utilized today.
Aluminum
Aluminum scaffolding is one of the newest types of scaffolding material, known to be versatile and low maintenance.
Its most notable feature is being lightweight. Aluminum is much lighter than steel, which makes it an easier scaffolding to handle. It requires less time and energy for constructors to transport, erect, and dismantle. This means it’s a cost-effective material as it reduces transportation and labor costs. Because of this, it’s often used in Scandinavia and Northern Europe where labor is very expensive.
It’s also a corrosion-resistant material. When exposed to air, it naturally forms a protective layer of aluminum oxide, which is a protective membrane that is highly resistant to any weather condition.
Steel
Steel is the most common, most relied-upon material in the modern scaffolding industry.
The biggest advantage of steel is that it offers great strength. It can support very heavy loads, so it’s suitable for tasks that require transporting heavy equipment and supplies. While it’s strong, it’s also flexible. It can be manufactured to fit any shape of structure, and its elasticity helps prevent cracks.
Fiberglass
Fiberglass, a type of fiber-reinforced plastic, is a newer, lesser known type of material used in the scaffolding industry. It’s used for filament-wound scaffolding tubes, which are sometimes referred to as ‘composite scaffold tubes.’
The reason why this material is lesser known is that it’s only used for scaffolding tubes, and reserved for special circumstances where there is a risk from live overhead electric cables.
As the usage suggests, fiberglass has excellent insulating properties and high resistance to fire, which makes it a wise choice for construction projects with the risk of electrocution. The downside is that it’s much more expensive than steel tubes.
Material of Formwork
Timber - This type is more suitable for small houses of two or three floors, and they are still in use for such constructions.
Steel - Steel Formwork is mainly used in major building projects or in cases where the same shuttering can be re-used in large numbers.
Plywood - In formwork applications, Plywood is mainly used for sheathing, decking and form linings.
Recycled plastic - Recycled Plastic Shuttering Plates are reusable, which makes the Shuttering or the Formwork cost-effective. Recycled Plastic Formwork works best in construction projects consisting of repetitive tasks.
Aluminium - Aluminum Formwork System in India, a comparatively new technology saves time, costs and increases construction efficiency.
Fabric - Fabric Formwork or Flexible Formwork is the emerging Shuttering Technology which facilitates construction of Complex and Irregular-shaped Structures.
How to Maintain Scaffolding
Regular inspections
Frequent inspections are crucial for maintaining the integrity of scaffolding structures. Make sure to inspect all scaffolding components regularly to identify and address any potential issues early.
Cleaning and storage
Keeping scaffolding equipment clean is essential for its longevity and performance. After each use, clean all components to remove dirt, debris, and any chemicals that may have come into contact with the scaffolding. Proper storage is also vital. Store scaffolding components in a dry, covered area to protect them from the elements and prevent rust and corrosion. Organize components neatly to avoid damage and make future setups more efficient.
Lubrication of moving parts
Lubricating moving parts, such as casters and adjustable components, ensures smooth operation and extends the life of the equipment. Use a suitable lubricant to keep these parts functioning correctly and prevent them from seizing up. Regular lubrication reduces friction and wear, contributing to the overall safety and efficiency of the scaffolding.
Repair and replacement
Promptly address any damaged or worn-out components. Do not use scaffolding with compromised parts, as this can pose significant safety risks. Replace any defective parts with high-quality replacements to maintain the structural integrity of the scaffolding.
Safety training
Proper training is essential for workers to understand how to use scaffolding safely.we provide comprehensive safety training courses to educate workers on correct scaffolding setup, use, and maintenance procedures. Ensuring that all personnel are adequately trained reduces the risk of accidents and promotes a safer work environment.
Weight capacity and load distribution
Proper load management is crucial for the safe operation of scaffolding structures. Always adhere to the scaffolding’s weight capacity limits to prevent overloading and potential collapses. Make sure to distribute loads evenly across the platforms to maintain balance and stability. Avoid placing heavy equipment or materials on a single section of the scaffolding.
Weather considerations
Weather conditions can significantly impact scaffolding safety. In adverse weather, such as high winds, heavy rain, or snow, avoid using scaffolding until conditions improve. Wet or icy surfaces can be slippery and increase the risk of falls. Ensure that scaffolding is adequately secured and anchored, especially in areas prone to strong winds.
Clean formwork after use
Immediate cleaning: Remove concrete residue and debris from formwork panels immediately after use. This prevents the hardening of concrete, which can be difficult to remove later and may cause damage to the formwork surface.
Use appropriate cleaning methods: Depending on the formwork material, use suitable cleaning agents and methods. For example, wooden formwork may require different cleaning techniques compared to steel or plastic formwork.
Apply protective coatings
Rust protection for metal formwork: Apply protective coatings or rust inhibitors to metal formwork components to prevent corrosion, especially if they are to be stored for extended periods.
Sealant for wooden formwork: Treat wooden formwork with sealants to protect against moisture and prevent warping or rotting.
Proper storage conditions
Dry and covered storage: Store formwork materials in a dry, covered area to protect them from adverse weather conditions, such as rain or extreme sunlight, which can degrade the materials over time.
Elevate from ground: Keep formwork materials off the ground on pallets or racks to prevent moisture absorption and damage from ground contact.
Organize and stack formwork neatly
Systematic organization: Organize formwork materials by size, type, and frequency of use. This facilitates easy access and efficient retrieval, reducing handling time and potential damage during storage.
Safe stacking: Stack formwork panels and components safely, ensuring they are stable and secure to prevent accidents. Avoid stacking too high to reduce the risk of toppling.
Regular inspections and repairs
Scheduled inspections: Conduct regular inspections of stored formwork materials to identify any signs of wear, damage, or corrosion. Early detection of issues allows for timely repairs or replacements.
Prompt repairs: Address any identified damage immediately. For metal formwork, weld cracks or reinforce weakened areas. Repair or replace damaged wooden formwork components as necessary.
Record keeping
Inventory management: Maintain accurate records of formwork materials, including quantities, conditions, and locations. This helps in planning for future projects and ensures that formwork is efficiently utilized and maintained.
Training and awareness
Educate workers: Ensure that all personnel involved in handling, assembling, and dismantling formwork are trained in proper maintenance and storage practices. Worker awareness can significantly contribute to the preservation of formwork materials.

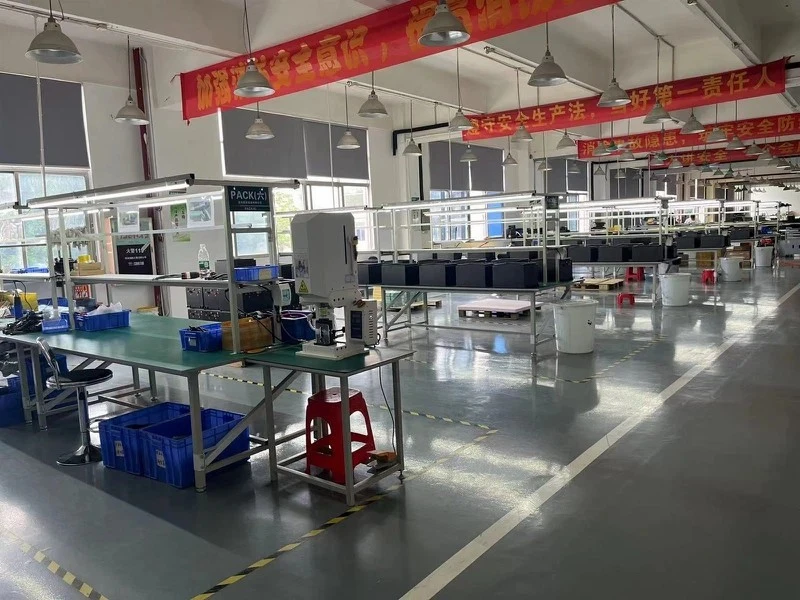

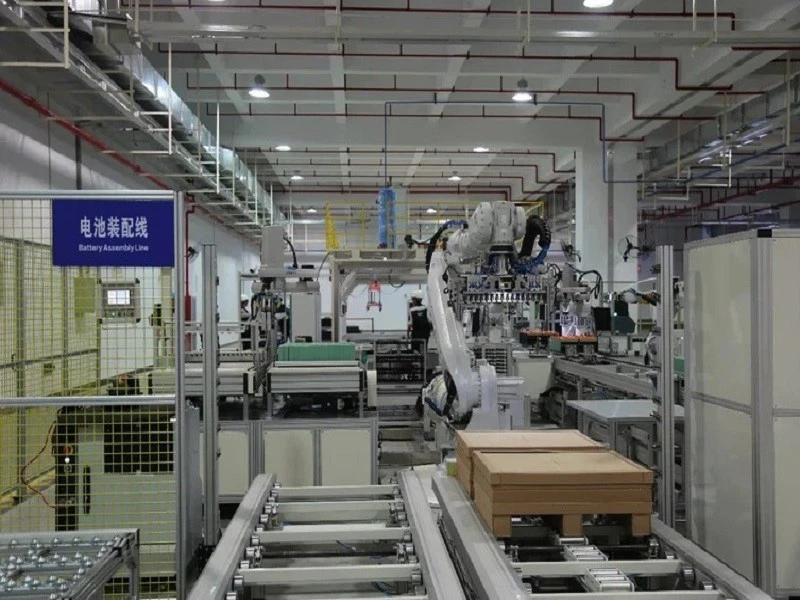

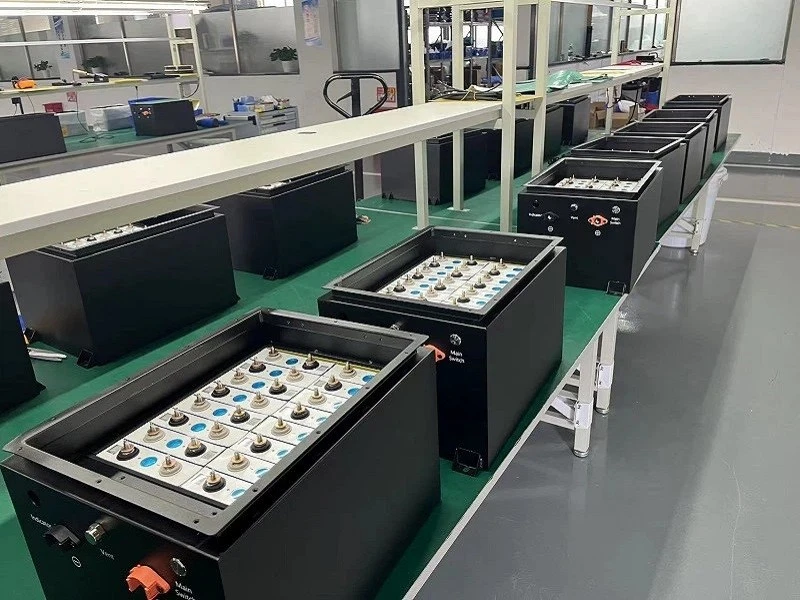

Our Factory
