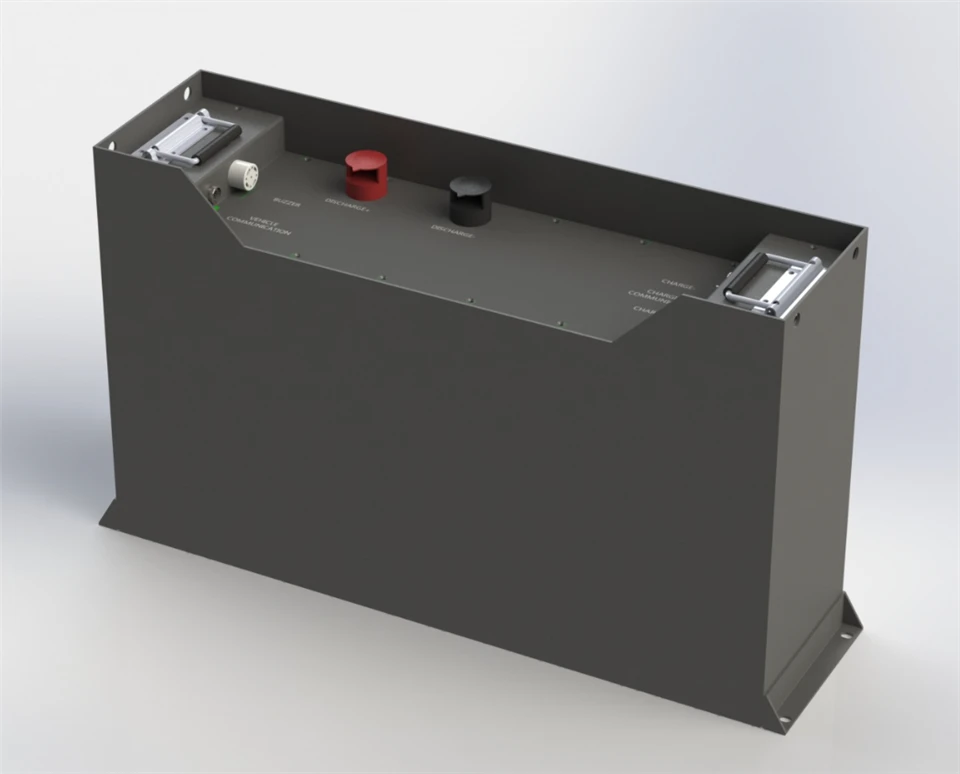

This product is a power battery system for electric forklifts, using lithium iron phosphate (LiFePO4) cells to form a 48V energy storage unit, which is used to drive the forklift's travel motor and hydraulic lifting system.
Products Advantages
LiFePO4 Cathode Material
Utilizes lithium iron phosphate cathode material (olivine structure). The crystal structure undergoes minimal changes during charge and discharge.
The material's decomposition temperature is higher than ternary materials, making it suitable for industrial vehicle powertrain environments.
Cell Isolation & Sealing Structure
Epoxy board insulation is used between cells.
Fixed with waterproof sealing strips and waterproof adhesive.
It is rainproof but not suitable for immersion in water.
Electrical Conductor Matching
Uses silicone-insulated power cables.
The cross-sectional area of the wiring harness is calculated and matched based on the rated continuous discharge current.
The thickness of the connecting copper busbars is selected according to current requirements.
Products Specification
|
Parameter |
Value |
|
Nominal Voltage |
48 |
|
Nominal Capacity |
125 |
|
Cycle Times |
3000 |
|
Battery Type |
Lithium Iron Phosphate Battery |
|
Charging Voltage |
58.4 |
|
Discharging Voltage |
40 |
|
Product Dimensions |
600225260 |
|
Shelf Life |
3 years |
|
Weight |
45kg |
Why choose us?
1. Battery Pack Assembly Capability
Capable of module assembly and full pack assembly. Production processes include:
Cell testing
Capacity sorting and grouping
BMS functional testing
Full pack aging testing
Pre-shipment electrical testing
2. Engineering Support for Vehicle Matching
Provides forklift power system matching support:
Motor power calculation confirmation
Controller rated current matching
Charger parameter confirmation
Discharge curve matching analysis
Complete electrical compatibility confirmation at the beginning of the project.
3. Material Traceability System
Key components include:
Cell batch records
BMS batch records
Main raw material procurement records
Supports quality traceability management.
4. Project-Based Production Management
Batch order production scheduling
Delivery plan management
Test data archiving
Suitable for long-term supply projects.
5. Technical After-Sales Support
Installation Guidance
Parameter Confirmation
Troubleshooting
Communication Data Analysis Support
