Introduction

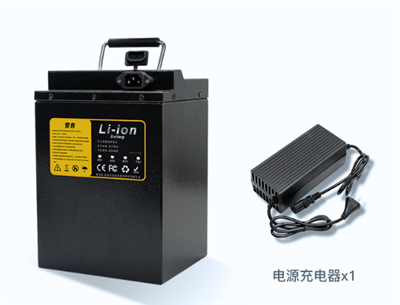

The E-Moped Lithium Battery is a high-capacity battery specifically engineered to power electric mopeds for daily commuting.
Features
1.Advanced Safety
Built-in BMS with overcharge, overdischarge, and short-circuit protection.
2.Long Cycle Life
Grade A cells, ≥1000 full charge/discharge cycles.
3.Wide Temperature Tolerance
Operating temperature -20℃ to 60℃, IP67 rated.
Specification
|
Cell type |
LiFePo4/Ternary lithium battery |
|
Nominal voltage |
24V |
|
Normal capacity |
20Ah |
|
Battery pack size |
See battery case |
|
cycle life |
1000 times |
|
Discharging temperature |
0℃-45℃ |
|
Charging temperature |
-20℃-60℃ |
|
IP protection |
IP67 |
|
Battery weight |
≈3.8kg |
|
BMS Protection function |
Overcharge protection, over discharge protection, short circuit, temperature protection, over current protection, over voltage protection, under voltage protection, can communication etc. |
Battery maintenance
Precautions for E-Moped Lithium Batteries:
New Battery Charging:
Newly purchased batteries are usually pre-charged to approximately 40%. It is crucial to fully charge them before use.
Timely Charging:
After significant discharge, avoid completely depleting the battery every time. Charge it promptly and aim to keep it fully charged.
Charging Sequence:
When charging, connect the battery first. Ensure it is fully charged, then cut off the power supply, and finally unplug the battery plug.
Long-term Storage:
For long-term storage without use, charge the battery every two to three months. There is no need for continuous power maintenance.
Use a Dedicated Charger:
Do not casually replace the charger. Try to use a dedicated lithium battery charger; otherwise, it will shorten the battery's lifespan and may even pose risks.
Cool Down Before Charging:
After prolonged use, do not charge immediately. Waiting for 10 to 30 minutes for the battery to cool down before charging to extend its lifespan.
Customization Process
1.Requirements Communication
Collect customer needs: application, performance, size, weight, and operating environment.
2.Scheme Design
Select battery chemistry, series-parallel configuration, and BMS design based on requirements.
3.Sample Production
Manufacture prototype samples with controlled materials and processes.
4.Performance Testing
Test capacity, cycle life, safety, and temperature performance; revise design if necessary.
5.Plan Optimization
Refine structure and BMS algorithms based on test results.
6.Batch Production
Mass-produce with strict quality control.
7.Delivery & After-Sales
Provide delivery, technical support, and maintenance services.
Company Strengths
1.Manufacturing Capacity
Own cell and PACK lines; supports scalable, in-house production.
2.Quality Control
Full-process inspection including incoming materials, aging, and package testing.
3.Customization & Integration
Capacity, voltage, structure, communication protocols; OEM/ODM support.
4.Certifications & Compliance
UN38.3, MSDS, CE; ensures global shipping and safety.
5.Technical Expertise
Battery selection, system integration, and application guidance across diverse EV and energy storage markets.
Sales Information
1.Cooperation Modes
Bulk supply, project-based customization, long-term partnerships.
2.MOQ
Standard / Custom models.
3.Pricing
Based on cell type, specifications, and quantity tiers.
4.Sample Policy
Standard samples and custom samples supported.
5.Delivery & Logistics
In-stock models or custom project lead times; hazardous material shipping support; warranty included.
FAQ
Q1.What industries do you serve?
EVs, electric scooters, golf carts, yachts, forklifts, RVs, energy storage, and mobile devices.
Q2.How quickly can customized solutions be delivered?
Lead times depend on order size; prototypes typically within weeks, mass production per project schedule.
Q3.Do you provide BMS with communication interfaces?
Yes, supports CAN, RS485, and other protocols.
