Description

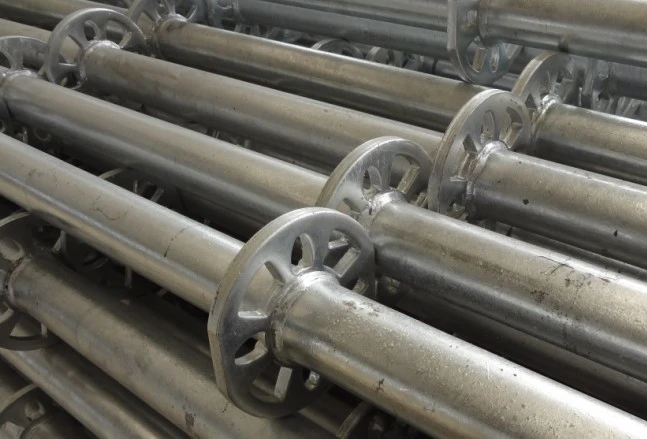

The Hot Selling Ringlock Scaffolding system comprises hot-dip galvanized steel pipes and modular components, assembled using integral wedge-shaped connectors.
This system is suitable for construction projects of varying sizes. Its modular design reduces preparation and disassembly time, facilitates handling and storage, and lowers on-site maintenance requirements.
Feature
Quantifiable Steel Performance
The main uprights and crossbars are made of Q345 or Q235 steel, with yield strengths of 345MPa and 235MPa respectively.
Hot-dip galvanizing thickness ≥ 80 μm, suitable for long-term use in corrosive environments.
Steel pipe wall thickness 3.0~3.25mm, load-bearing capacity can be calculated according to EN BS12811 standard, suitable for construction platforms with spans of 2~3m.
Wedge-shaped Node Structure
Each node is locked with wedge-shaped pins, with shear resistance up to 15kN.
No additional bolts or nuts between nodes, reducing the risk of loosening.
Modular node dimensions are uniform, facilitating batch installation and disassembly.
Corrosion Protection and Durability Design
Hot-dip galvanized steel pipes show no significant rust after 480 hours of salt spray testing.
Suitable for long-term indoor and outdoor construction.
Scaffold boards and connectors are made of galvanized or flame-retardant materials.
Specification
|
Item Name |
Specification(mm) |
Steel Grade |
Standard |
|
Ringlock Standard |
48.3*3.25/3.2/3.0*500 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
48.3*3.25/3.2/3.0*1000 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
48.3*3.25/3.2/3.0*1500 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
48.3*3.25/3.2/3.0*2000 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
48.3*3.25/3.2/3.0*2500 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
48.3*3.25/3.2/3.0*3000 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
60.3*3.25/3.2/3.0*500 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
60.3*3.25/3.2/3.0*1000 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
60.3*3.25/3.2/3.0*1500 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
60.3*3.25/3.2/3.0*2000 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
60.3*3.25/3.2/3.0*2500 |
Q345/Q235 |
EN BS12811, EN BS12810, AS/NZS1576 |
|
Ringlock Standard |
60.3*3.25/3.2/3.0*3000 |
Q345/Q235 |
EN BS12811, EN BS12810 |
Customization Options
Dimensions and Load-Bearing Design
Upright pole length can be adjusted according to construction drawings (500~3000mm).
Horizontal and diagonal bar lengths can be customized based on load calculations.
Load rating (static or dynamic load) can be specified.
Materials and Surface Treatment
Steel grade selection: Q235 or Q345
Surface treatment: Hot-dip galvanizing, anti-corrosion spraying
Zinc plating thickness can be optimized according to environmental humidity and corrosion requirements.
Nodes and Connectors
Wedge-shaped nodes can withstand shear force ≥ 15kN.
Node gap ≤ 2mm to ensure tight assembly.
Node shape can be customized for high-load or high-rise construction requirements.
Shipping
FAQ
Q: Is this scaffolding suitable for high-rise buildings?
A: High-rise construction requires calculating node spacing based on upright length and span.
Q345 steel and thickened crossbars can be selected according to project requirements.
Q: How many people are needed for installation?
A: Modular design allows for single-person installation of a 1m² platform.
Multi-person collaboration can accelerate the construction of large sections.
Q: Is routine maintenance required?
A: Regularly check the tightness of wedge joints.
Check the integrity of the galvanized layer.
No additional coating or anti-corrosion maintenance is required.
Q: Are parts easily lost?
A: Modular structure, loose parts <2%.
All connectors can be managed as a whole during transportation and storage.
Q: Is training required before use?
A: Operational training is mandatory, and construction specifications must be followed.
Construction plans and node load instructions can be provided.
