72V Golf Cart Lithium Battery

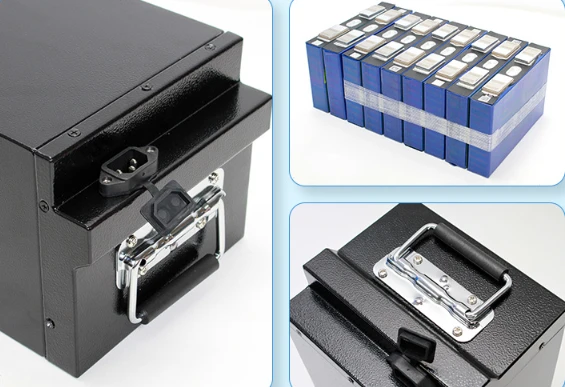

Super Prismatic Lithium Cells:



• Shape Advantage:

The 72V Golf Cart Lithium Battery has a square design, which is better for space use. Square batteries can be packed more closely than cylindrical ones, fitting well in the limited space of a golf cart. This not only maximizes space but also leaves ample room for other cart components.



• Higher Energy Density:

These super prismatic 72V Golf Cart Lithium Battery can store a significant amount of energy within the same volume or weight as compared to others. For golf carts, itmeans an extended cruising range, reducing the need for frequent battery replacements or charges and enhancing the cart's usability and convenience.



Maintanance-Free:



• Worry-Free Daily Use:

When using the 72V Golf Cart Lithium Battery, users don't need to do complex maintenance like adding electrolyte or cleaning electrodes regularly. This saves users' time and effort, allowing them to enjoy golf instead of worrying about battery upkeep.



• High Reliability:

Being maintenance - free also shows that the internal structure and materials of the 72V Golf Cart Lithium Battery are stable and reliable. The battery is less likely to fail due to improper maintenance if we use it normally, reducing the failure rate and improving the reliability and stability of the golf cart.



Durable and Long Cycle Life:



• Strong Durability:

"Heavy Duty" means this 72V Golf Cart Lithium Battery can easily handle high - power output and frequent charge - discharge cycles. It has excellent overload and impact resistance. Whether the golf cart is climbing, accelerating, or in frequent start-stop situations, the battery remains stable and free from performance degradation or damage.



• Long Cycle Life:

A long cycle life is a big plus of lithium iron phosphate batteries, including this 72V Golf Cart Lithium Battery. Even after many charge - discharge cycles, this 72V battery can keep high capacity and performance. Generally, its cycle life can reach three thousand times or more. It means we don't need to replace the battery during its service life, and then the cost is reduced and it's btter for our environment.



Smart BMS (intelligent battery management system):



• Monitoring in Real Time:

We can monitor all kinds of data like voltage, current. temperature in real-time by the intelligent BMS of the 72V Golf Cart Lithium Battery . And the abnormal situations such as overcharge, over-discharge, over-current, overheat...can be detected. Then we can take some protecting measures to protect our battery.



• Balanced Management:

We can manage the charging and discharging and keep balances of eacn battery in battery pack by BMS of the 72V Golf Cart Lithium Battery. the overall performance and lifespan of our battery pack are increased.



• Communication Function:

Our intelligent BMS can also communicate with the golf cart's control system. It can send battery status information to the vehicle control system, allowing the control system to make adjustments and controls based on the battery's condition, improving the vehicle's safety and reliability. With this BMS communication function, the information of battery statu can be sent to the control system of this cart. And we can control the control system to adjust according to battery situation, then the safety and reliability of the battery can be improved.



• Intelligent BMS:

We have developed an intelligent APP that connects to the battery management system of this product. By installing the APP on a mobile phone and following the provided instructions to establish a connection, users can access all relevant battery data anytime using their mobile devices. It provides real-time monitoring of the battery's status and sends immediate warning notifications in case of any issues, enabling quick action.



Wider Temperature Range: -20℃ - 60℃ (wide temperature range):



• Excellent Low-Temperature Performance:

Even in low-temperature environments like winter or cold regions, this battery can run well. When the temperature drops to -20℃, it can still power the golf cart smoothly, ensuring its usability in cold climates. This is particularly important for users in frigid areas.



• Strong High-Temperature Adaptability:

In high-temperature settings such as summer or hot regions, the battery can be operated normally at 60℃ without any performance degradation or safety concerns due to excessive heat.  golf carts can be used in diverse climatic conditions because the wide temperature range, expanding their application scope.



Light Weight & Compact Design (lightweight and compact design):



• Light Weight:

Compared with traditional lead-acid battery,  our lithium iron phosphate battery is much lighter. So the total weight of the golf cart is lighter,  the golf cart is more maneuverable and easier to drive. Additionally, the lighter weight helps lower the cart's energy consumption and improve energy efficiency.



• Compact Design:

Compact Design Benefit: The compact design of our 72V Golf Cart Lithium Battery enables the battery to be installed neatly inside the golf cart without taking up too much space. This makes the cart appearance sleek and also makes it convenient for installation and removal, facilitating user maintenance and replacement.



Nominal voltage	72V
Rated capacity	100Ah
cycle life	3000
Cutoff charging voltage	87.6V
Discharge cut-off voltage	60.0V
working temperature	-20℃-60℃
Storage temperature	-20℃-45℃
Warranty period	2 years
Protection function	Overcharge, over discharge, temperature protection, over current protection





Sample: 7 working days

Bulk order: 30 working days

At PAILORT each and every one of our batteries is meticulously crafted upon receiving an order, ensuring that you receive the utmost longevity and optimal performance for your pack. We take great pride in this approach, as it allows us to deliver a superior product tailored to your specific requirements.

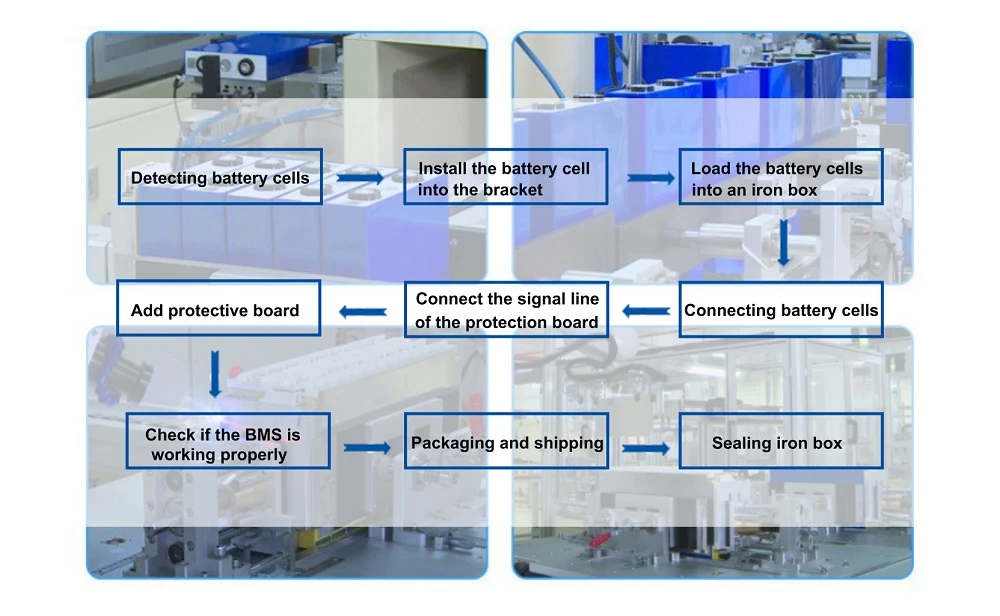

During the production process of this 72V Golf Cart Lithium Battery, from raw materials to battery pack assembly and then to the finished product, there are many quality inspection links to ensure the excellent quality of our products.



First of all, in terms of raw materials - we use Class A battery cells of well-known domestic brands such as Farasis, CATL, Gotion, etc. If the customer has a specified battery cell brand, we will purchase and produce according to customer requirements. And we will test the raw materials. For example, for electrode materials, separator materials, and electrolyte materials, we will test their composition, content, uniformity, and stability to ensure the stability and safety of the battery and achieve the best performance.



Secondly, we will test the thickness and consistency of electrode plates, which will also affect the performance of the battery. We also need to measure the flatness of electrode plates. Electrode plates that do not meet the requirements will lead to poor battery performance.



During the battery assembly process, we will test the battery's dimensions including length, width, and height. We also need to ensure good sealing of the battery to ensure the safety of our battery products during use. Regarding this point, we will conduct a sealing test.



We will also detect changes in battery voltage, current, and temperature to ensure that all battery parameters meet the usage standards.



Finally, we will conduct performance tests on the 72V Golf Cart Lithium Battery, including charging and discharging voltage, time, temperature changes, and capacity. And we will conduct charging and discharging tests on the battery at different rates.



Through multiple charging and discharging tests to observe the attenuation of battery capacity, we can evaluate the 72V Golf Cart Lithium Battery's cycle life.
