DESCRIPTION
The Electric Bike Lithium Battery with LED Indicator Light features a built-in BMS (Battery Management System) for precise management of the balanced charging and discharging of individual cells and parallel battery packs. This battery is suitable for various electric vehicle platforms and supports outdoor use.
SPECIFICATION
|
Cell type |
LiFePo4/Ternary lithium battery |
|
Nominal voltage |
24V |
|
Normal capacity |
12Ah |
|
Battery pack size |
See battery case |
|
cycle life |
1000 times |
|
Discharging temperature |
0℃-45℃ |
|
Charging temperature |
-20℃-55℃ |
|
IP protection |
IP67 |
|
Battery weight |
≈2.3kg |
|
BMS Protection function |
Overcharge protection, over discharge protection, short circuit, temperature protection, over current protection, over voltage protection, under voltage protection, can communication etc. |
Features
- Built-in BMS Balance Management: Precisely controls the voltage difference between individual cells and parallel batteries, preventing overcharging or over-discharging of individual cells and eliminating the need for individual battery charging.
- LED Power Indicator: Clearly displays the remaining power, allowing users to easily assess range and supports charging status display.
- Wide Operating Temperature Range: Charge/discharge temperature ranges are -20℃–55℃ and 0℃–45℃ respectively, suitable for indoor, outdoor, and various climatic environments.
- Waterproof and Dustproof: IP67 protection rating, usable in rainy or high-humidity environments.
- Lightweight Design: Battery weighs approximately 2.3 kg, facilitating installation and removal in electric vehicles while reducing the impact of overall vehicle weight on range and operation.
Customization Options
- Voltage and Capacity Customization: Available in 24V, 36V, and 48V voltages, and capacities ranging from 8Ah to 20Ah, to meet different vehicle models or power requirements.
- BMS Function Customization: Supports customized overcharge, over-discharge, overcurrent, and over-temperature protection, communication protocols (such as CAN/RS485), and parallel management logic.
- Housing and Interface Customization: Battery housing dimensions, mounting hole positions, LED indicator positions, and shapes can be designed according to vehicle or project requirements.
- Charging and Output Interface Customization: Offers various types of charging ports (round, square, USB output, etc.) and output port layouts.
- Branding and Packaging Customization: Customer branding and customized packaging solutions are available to facilitate project implementation or retail sales.
Why choose us?

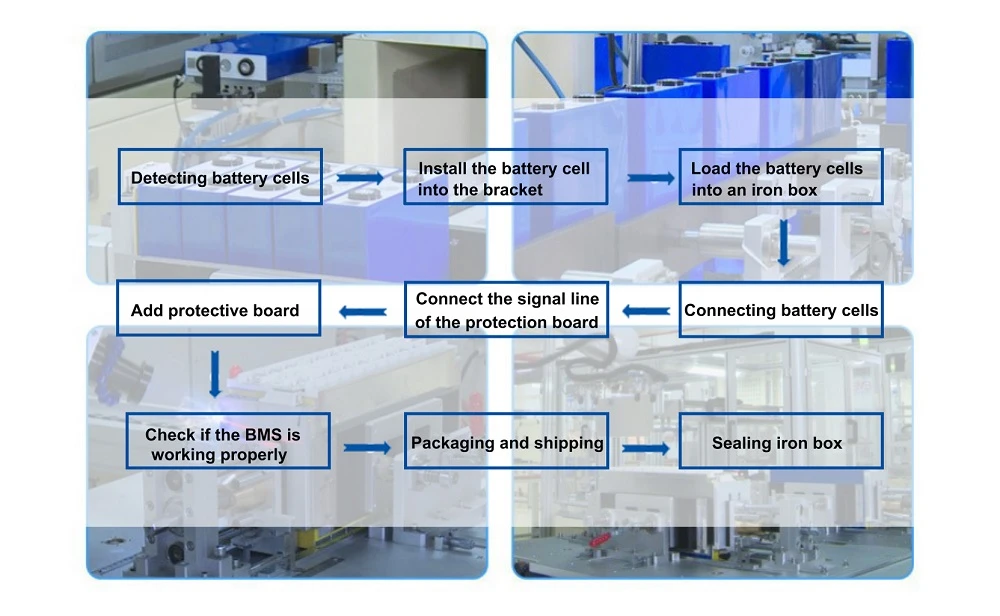

- Production Capacity and Supply Guarantee: Equipped with complete lithium battery pack production, BMS assembly, and testing equipment, capable of stably meeting bulk order delivery needs.
- Comprehensive Quality Management System: Possesses full-process quality control including IQC, IPQC, and OQC; the factory complies with ISO9001/14001/18001 standards.
- International Certifications and Standardization: Products have passed CE, UN38.3, RoHS, and other certifications; test reports are available.

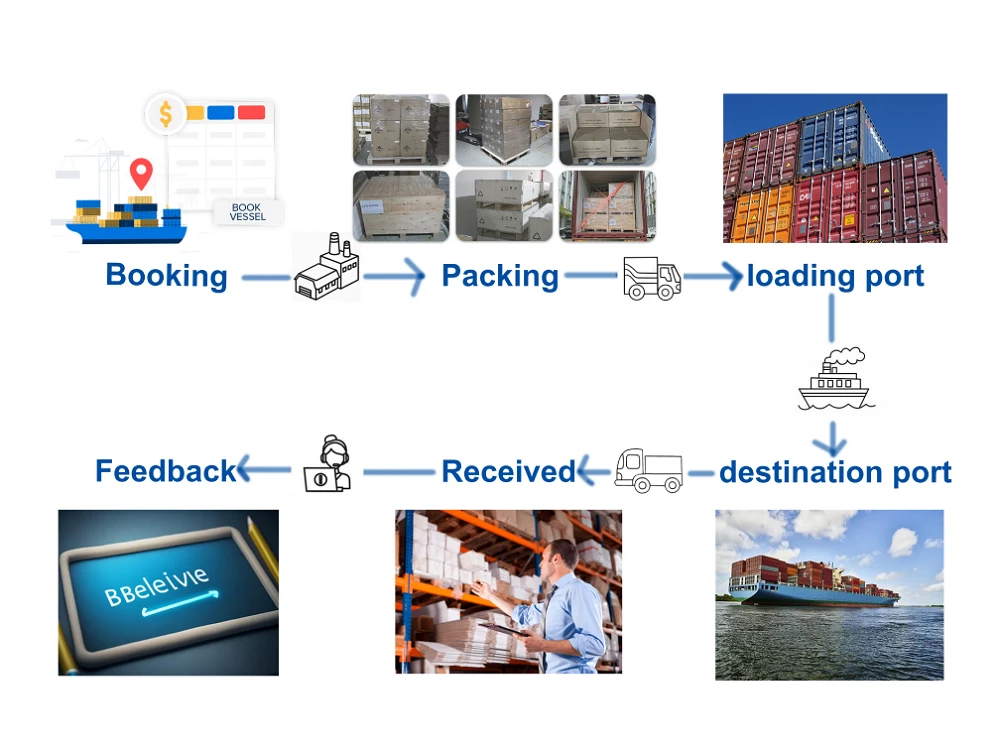

- Logistics and Service Support: Provides global shipping solutions, rapid order response, and after-sales technical support.
- Technical Support: Provides installation solutions, battery pack matching suggestions, and usage guidance to assist buyers in optimizing range and system compatibility.
