Introduction
Folding Built-in E-bike Lithium Battery is a lithium battery pack installed inside a folding e-bike frame.
Features
1.High energy density
36V16Ah specification, 4.5kg body integrates 576Wh rated electric energy.
2. BMS Protection
Overcharge, over-discharge, overcurrent, short-circuit and high-temperature protection, with cell balancing control integrated at pack level.
3. Sealing
Fully sealed housing rated IP65, with enclosed structure and no exposed internal wiring.
Specification
|
Cell type |
LiFePo4/Ternary lithium battery |
|
Nominal voltage |
36V |
|
Normal capacity |
16Ah |
|
Battery pack size |
See battery case |
|
cycle life |
1000 times |
|
Working voltage |
27.5V-42V |
|
Charging time |
3~6h |
|
Charging current |
3~6A |
|
Normal working current |
10A |
|
Max working current |
25A |
|
Discharging temperature |
0℃-45℃ |
|
Charging temperature |
-20℃-55℃ |
|
IP protection |
IP67 |
|
Battery weight |
≈4.5kg |
|
BMS Protection function |
Overcharge protection, over discharge protection, short circuit, temperature protection, over current protection, over voltage protection, under voltage protection, can communication etc. |
Company Service
1.Fast delivery
Timely order fulfillment for global customers.
2.12-hour inquiry response
Professional pre-sales consultation.
3.OEM/ODM support
Customized battery design and production.
4.Quality assurance
Premium products at competitive pricing.
5.Warranty coverage
2-5 years for folding built-in ebike batteries.

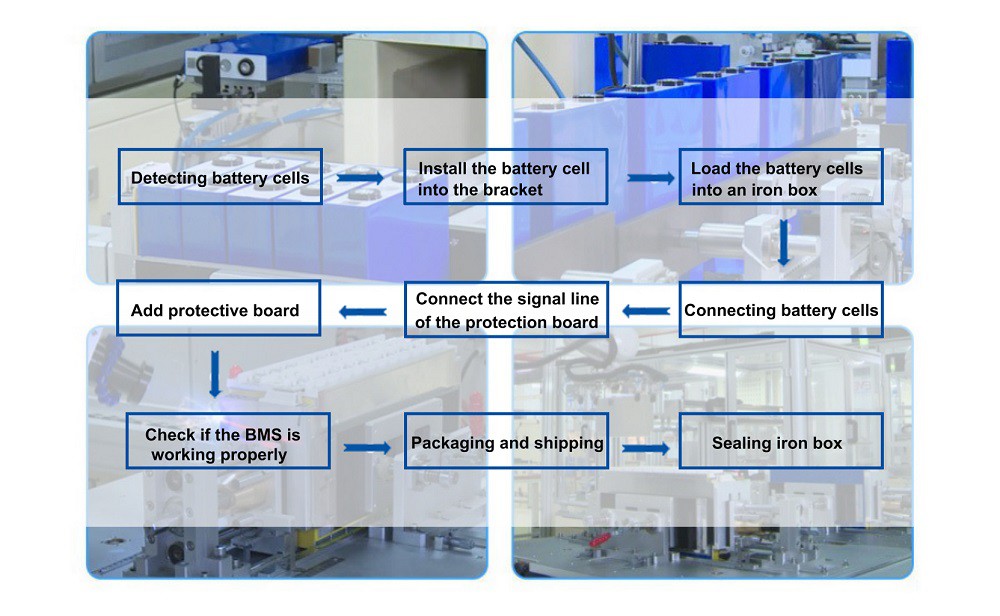

Production
Shipping
Procurement
1.MOQ flexibility
Accept small trial orders for market testing.
2.Payment options
Support T/T, L/C, and other secure methods.
3.Sample service
Provide prototype samples for validation.
4.Global shipping
Comply with UN38.3, IEC62133 shipping standards.
5.Price tiering
Volume-based discounts for bulk purchases.
FAQ
Q1: What is the battery's cycle life?
Cycle life exceeds 1000 times under standard charging conditions.
Q2: What is the operating temperature range?
20℃ to 60℃ for discharge, 0℃ to 45℃ for charging.
Q3: Which communication interfaces are supported?
Supports UART/CAN bus for device system integration.
Q4: Is the battery compliant for international shipping?
Yes, certified for UN38.3, IEC62133, and CE standards.
Q5: How to handle after-sales issues?
Contact support for troubleshooting or replacement within warranty.
