Introduction
Foldable Electric Bike Lithium Battery is a LiFePO₄ battery pack used to provide power for foldable electric bicycles.
Features
1.Premium Cell Quality
A-grade lithium cells, 36V16Ah stable 10A continuous discharge.
2.Long Cycle Life
LiFePO₄ chemistry, 3000–5000 charge-discharge cycles, equivalent to more than 8–13 years of service life.
3.High Safety Protection
Reinforced casing + protection circuit, real-time voltage/current/temperature monitoring.
Specification
|
Cell type |
LiFePo4/Ternary lithium battery |
|
Nominal voltage |
36V |
|
Normal capacity |
16Ah |
|
Battery pack size |
See battery case |
|
cycle life |
1000 times |
|
Working voltage |
27.5V-42V |
|
Charging time |
3~6h |
|
Charging current |
3~6A |
|
Normal working current |
10A |
|
Max working current |
25A |
|
Discharging temperature |
0℃-45℃ |
|
Charging temperature |
-20℃-55℃ |
|
IP protection |
IP67 |
|
Battery weight |
≈4.5 |
|

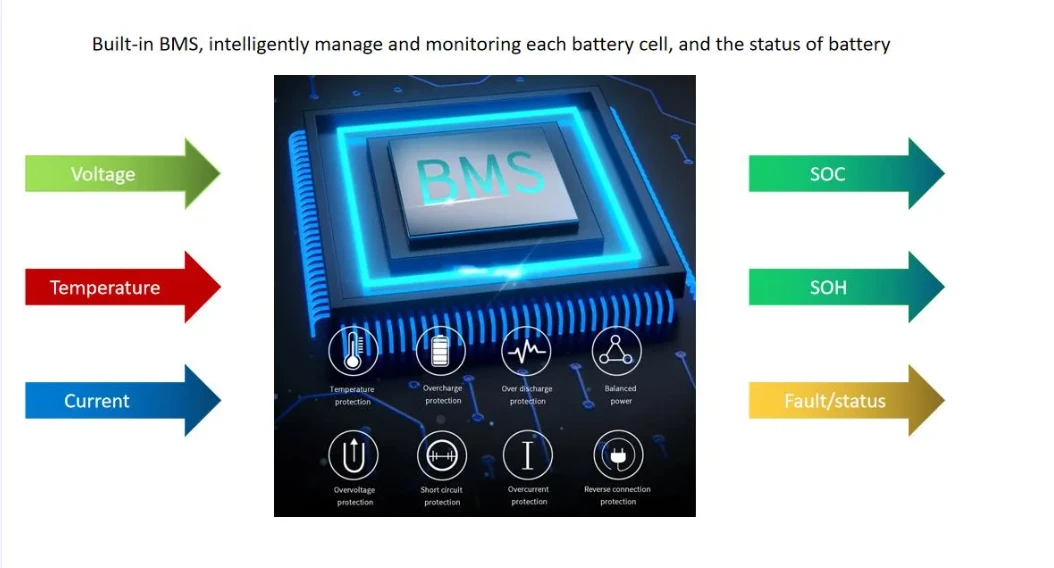

BMS Protection function |
Overcharge protection, over discharge protection, short circuit, temperature protection, over current protection, over voltage protection, under voltage protection, can communication etc. |
Company Strengths
1.Professional R&D Team
10+ engineers, 9+ years of lithium battery R&D and production experience.
2.Strict Cell Selection
Only A-grade cells, standardized grouping process for consistent performance.
3.Integrated In-House Production
One-stop manufacturing from cell arrangement, BMS integration to final assembly.

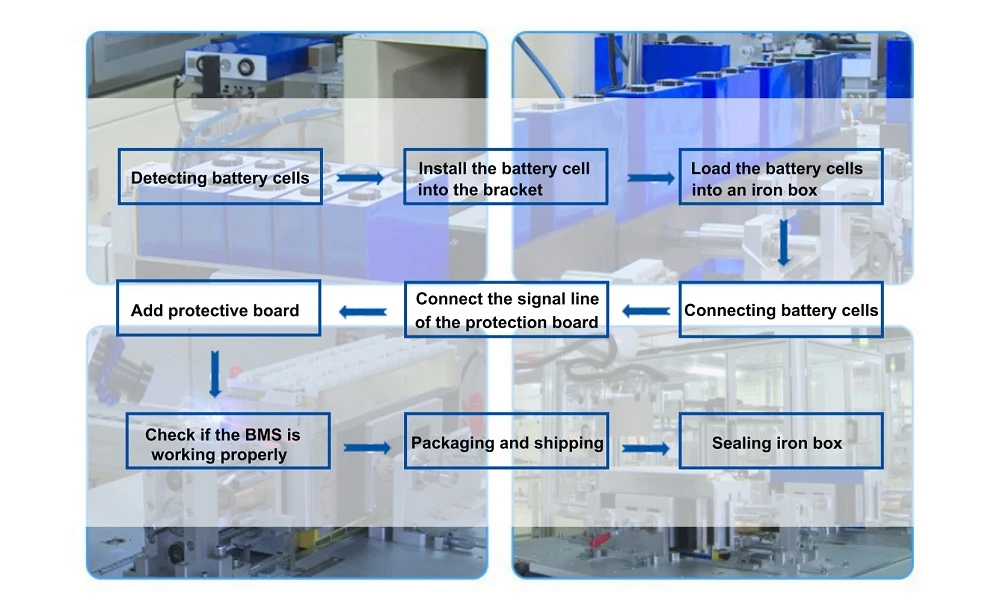

Production Process

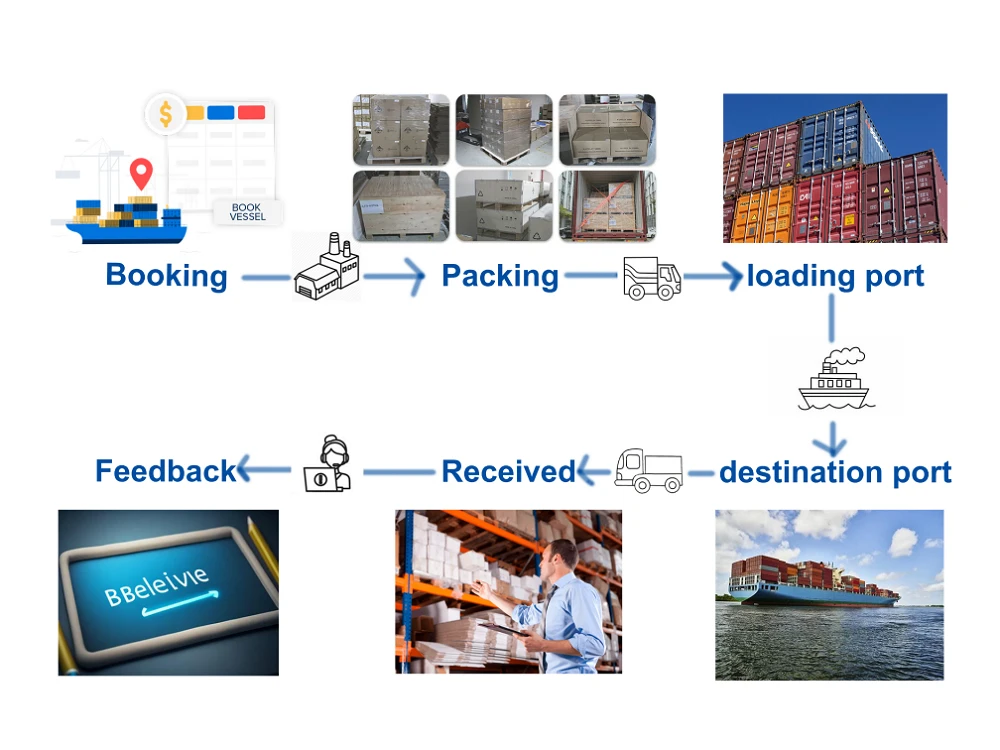

Shipping
Procurement
1.Custom Specification Confirmation
Pre-production validation of 36V voltage, capacity, and custom configuration.
2.Efficient Production Scheduling
Batch planning with 3–6h charging cycles for rapid order fulfillment.
3.Clear Delivery Timeline
Standard lead time: 7–15 working days; expedited options available for urgent orders.
FAQ
Q1.What is the battery's operating temperature range?
Discharge: 0℃–45℃; Charge: -20℃–55℃.
Q2. Is the battery compatible with international voltage standards?
Yes, it supports global 100–240V AC charging input standards.
Q3. What safety certifications does the battery pack hold?
It holds CE, UN38.3, and IEC62133 certifications.
Q4. Can the battery be used in all foldable e-bike models?
It is a 36V16Ah standard pack, compatible with most foldable e-bikes matching its voltage and current specs.
